Smart Card / RFID Label / RFID Reader
 |
HC-5FC
Hcere
| Quantity: | |
|---|---|
![Y074(3ZI0NG4%DK]Y6DVJEE_副本](http://a3.ldycdn.com/cloud/lmBqiKrkRlqSlomjjjoo/Y074ZI0NG4-DK-Y6DVJEE_fuben.png)
SPECIFICATION
Material: ABS

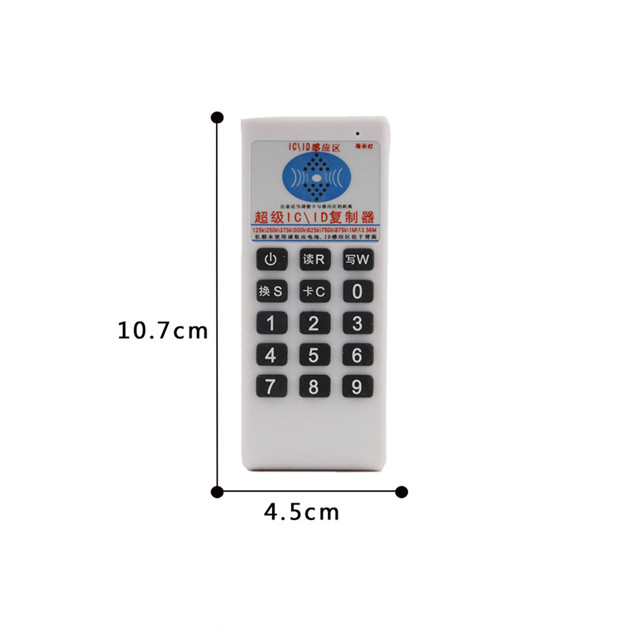

Size: 107mm*45mm*20mm
Frequency: 125Khz/250Khz/375Khz/500Khz/13.56Mhz
Power Supply: 2*AAA battery
Working Distance: 0-5cm
Support Card: 125Khz: TK4100/EM4100/EM4200…13.56Mhz: F08/Mifare S50…
Working Life: >20000 times
INSTRUCTION
User's manual
1. Start: Press the power swich, machine open. Standby 1 minute machine automatic shutdown.
2. Chose Working Frequency: Press "S(Frequency Switch)" change the working frequency, voice
prompts the current working frequency;
3. Read Card: After chose the right working frequency, put the old card at induction zone(125Khz card on the back is much better), press the "R(read)" button, if read successfully, the red led flashes one, voice prompt: "read success", if read fails,red led flashing fast, voice prompt: "read failed"
4. Write Card: put the new card in the induction zone, press the "W(write)" button, if successful, the red led flashes once, voice prompt: "write success", if failed, red led flashing fast, voice prompt: "write failed".
5. Press "C(card number)", the voice prompt "Please enter card number", LED rapidly flashing, then input card number, if the sound "input correct", put new card on induction zone, press the "W(write)"button, then new card write successfully.
