Smart Card / RFID Label / RFID Reader
 |
HC-LFC
Hcere
| Quantity: | |
|---|---|
![LD$]9PRQB@)%H}W@XC@PQG](http://a3.ldycdn.com/cloud/liBqiKrkRlqSloqjiqoq/LDPRQB-H-W-XC-PQG.png)
SPECIFICATION
Frequency: 125Khz
Power Supply: 2*AAA battery
Working Distance: 0-5cm
Support Card: TK4100/EM4100/EM4200 and other 125KHZ card (HC-LFXC support HID card)
Working Life: >20000 times

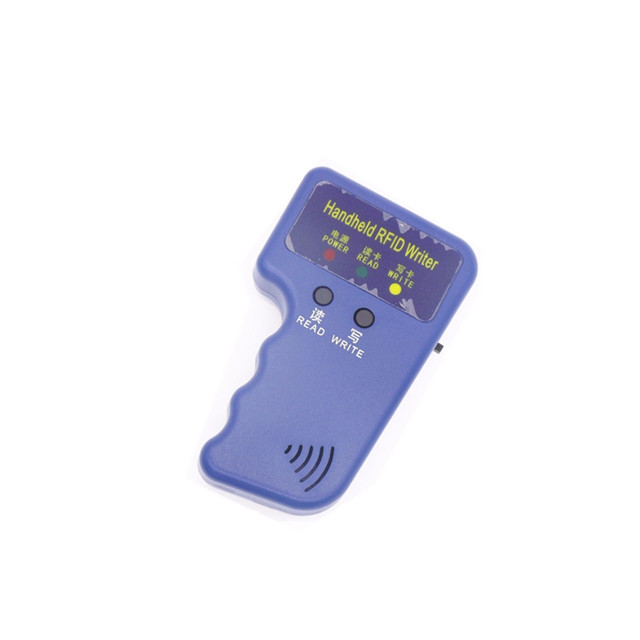

INSTRUCTION
START
Push up the right side switch, hearing two beeps (HC-LFXC can hear three beeps). yellow and green light flashing one time, red light always turn on, it means the machine open.
CLEAN CARD
When machine open, put the writble card on induction zone, press write button, the cards will be all written by “0”.
COPY CARD
After machine open, put the old card on induction zone, press “read botton”, you can hearing 2 beeps and green light flashing, it means reading successfully.
After reading successfully, put new card on induction zone, press “write button”, you can hearing 2 beeps and yellow light flashing, it means copy successfully.
