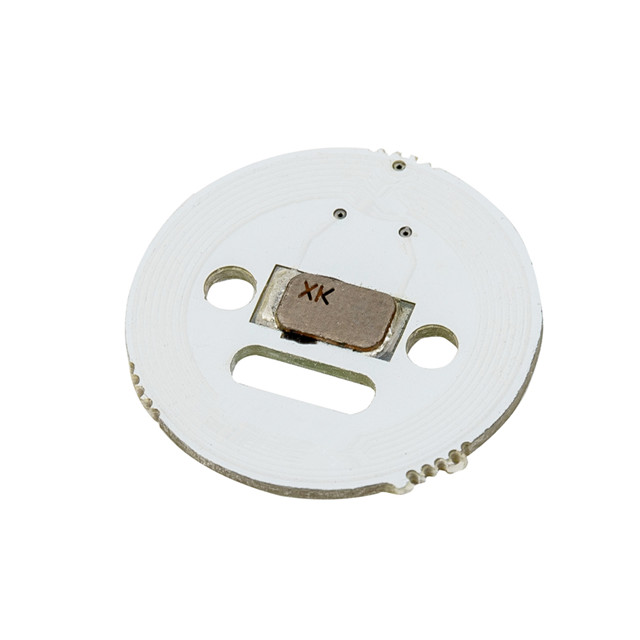

20mm Diameters PCB High Temperature Resistance RFID Tag

Material: PCB
Size: 20mm Diameters
Chip: HF(Fudan, MIfare, Icode, NTAG...)
Standard: ISO14443A or ISO15693
Frequency: 13.56Mhz
Reading Distance: 0-10cm
Temperature Resistance: -40℃-180℃

Instruction: This tag is designed by PCB material, it can resist high temperature and high pressure. Also it has more stable performance compare with traditional RFID tag that made of coil antenna. Because of these features, it is widely used in secondary procession, such as making into silicone wristband.

  • HC-SP20D

  • HECERE

Availability:
Quantity:
Inquire Add to Basket

Mode Number

HC-SP20D

Material

PCB

Size

20mm Diameters

Color

White


Chip Optional

RFID ISO14443A: Fudan F08, Mifare 1K S50, Ultralight EV1, Ultralight C...

RFID ISO15693: Icode-slix, Icode-2...


NFC: NTAG213, NTAG215, NTAG216...

Feature

High temperature resistance, high pressure resistance, waterproof

Temperature-resistance

-40℃~180℃ (No broken at 180℃ in 1 minutes)

Working Temperature

-25 ℃~75℃

Reading Distance

0-10cm

Data Retention

> 10 Years

Read-write Times

> 100,000 Times
