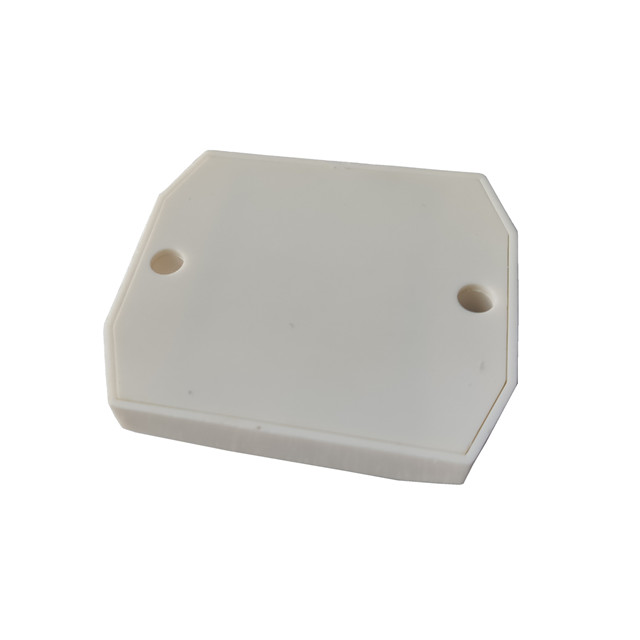

56*50*9mm ABS RFID Anti-metal Tag

Tag is designed by ABS shell sealed RFID wet inlay inside. Because of anti-metal process, tag can work normally on the metal. ABS shell can prevent chip from water, dust and chemical corrosion, protection level reach IP67. It is widely used in outdoor asset tracking.

  • HC-AM-04

Availability:
Quantity:
Inquire Add to Basket

Mode Number

HC-AM-04

Material

ABS

Size

56mm*50mm*9mm, ⌀5mm of hole

Color

Grey, blue, red, black, yellow (Color can be customized)

Weight

20g


Chip Optional （860Mhz-960Mhz UHF Chip）

Alien: H3/H4

Monza: 4/4E/4QT/R6/R7


Ucode: 7/8

Install Method

Screw or 3M sticker (3M sticker can be made on tag when production)

Chemical Resistance

According to IP67 (Waterproof, sunscreen, anti-soaking)

Temperature-resistance

-20 ℃~70℃

Working Temperature

-10 ℃~50℃

Reading Distance

1-3M (Handheld Reader), 4-7M(Fixed Reader)

Data Retention

> 10 Years

Read-write Times

> 100,000 Times
