Smart Card / RFID Label / RFID Reader
 |
HC-PA11
HECERE
| Quantity: | |
|---|---|
About RFID
Automatic identification technology that uses radio frequency signals to achieve
non-contact information transmission through space coupling (alternating magnetic
field or electromagnetic field), and achieves the identification purpose through the
information. Conventional use in regional personnel positioning has great advantages.

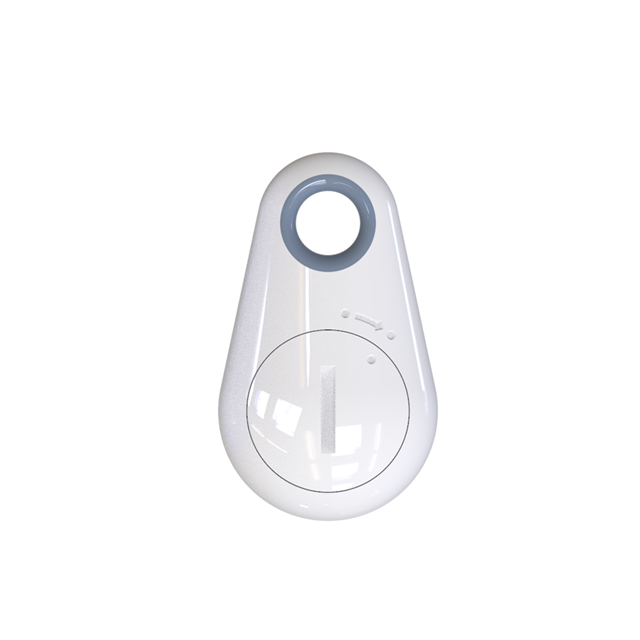

Product Picture
Product Summary
The HC-PA11 keychain can have multiple operating frequencies. 2.4GHz can be identified from a long distance, making it more secure. The tag comes with a 125k low-frequency activation function, which needs to be triggered to be recognized by the 125Khz antenna. Mini appearance, generous and beautiful, small and exquisite, convenient to carry, there are 4 colors to choose from, can also help customers to print LOGO, add SOS function according to customer needs. Tags are widely used in parking lot, employee attendance, personnel positioning, vehicle management and so on.
Product Feature
● Reading: Compared with bar code, there is no need to scan in a straight line, the reading speed is faster, and multi-tag recognition and motion recognition can be performed;
● Security: Anti-tampering, encryption algorithm and authentication to ensure data security and durability;
● Dedicated chip, unique serial number, difficult to copy. Durability without mechanical failure, fully sealed structure resistant to harsh environments.
● Tag ID number: 10 bytes;
● Reading Type: Read-only;
● Duration of use: large battery capacity and long service life;
● Waterproof: IP5;
● Reading Distance: Long range;
● Anti-suddenness: Advanced anti-collision technology can identify more than 2000 tags at the same time;
● High speed recognition: recognition speed can reach 60 km/h;
● High anti-interference: no special requirements for various interference sources on the site;
● Anti-electromagnetic interference: 10V/m0.1 ~ 1000MHz AM, AM electromagnetic
wave.
Datasheet
Physical Parameter | |
Size | 52mm×31mm×11mm |
Material | ABS |
Color | Grey, red, black, blue, green |
Weight | 9g |
Packing | Corrugated box (50pcs / box) (can be customized) |
Environmental Parameters | |
Working Humidity | <95% |
Working Temperature | -25 ~ 70℃ |
Storage Temperature | -40 ~ 85℃ |
Protection Level | IP54 (Dust-proof and waterproof, do not soak) |
Performance parameter | |
Static (standby) working current | <5uA |
Operating Voltage | 3V |
Battery | CR2032 X 1 (Battery can be replaced) |
Working Current (Transmit signal) | 18mA (Pulse mode) |
Battery Life | 3Year (theoretical value) |
Collision Ability | >2000PCS |
Transmit Time | Active 1 time per second / Passive 3 to 4 times per second |
Sensitivity | -80 dBm ～ -90 dBm |
Working Mode | Read-only |
Working Method | Active/Passive /Active-passive combination |
Low/High Frequency | 2.4G + 125Khz |
Antenna Far-field Picture
Horizontal picture: Vertical picture:
Precautions
● Do not put it into the fire or store it in a high temperature environment over 85 ℃;
● Do not use sharp tools to damage;
● Do not place it near corrosive articles;
● Do not change the parameters, specifications and models of components during maintenance;
● Do not put the tag in a closed space;
● Do not collide with the tag violently;
● Do not use heavy objects to squeeze the tag.
Applications
● Residential parking lot management
● Staff attendance management
● Personnel positioning
● Vehicle management
● Card Management
● Personnel access management
● School student and teacher attendance management
Definition of data format sent back by the reader
● Data packet format (40 characters in total)
Item | Mark | Device Number | Device Datetime | Tag Number | Flag | Flag Data | Checksum |
Description | # | Hexadecimal | Decimal | Decimal | Any | Hexadecimal | * |
Number of characters | 1 | 8 | 12 | 10 | 1 | 6 | 2 |
● Details of the data packet
No | Definition | Description |
1 | Head sign | ‘#’ |
2 | Device ID7(H) | Content format: hex character format Equipment type, equipment number or site number can be modified by yourself (you can modify it after entering equipment management page) (This data refers to the device number of the reader, not the number of the wristband) |
3 | Device ID6(H) | |
4 | Device ID5(H) | |
5 | Device ID4(H) | |
6 | Device ID3(H) | |
7 | Device ID2(H) | |
8 | Device ID1(H) | |
9 | Device ID0(H) | |
10 | Year High（D） | Content format: decimal character format time Year, month, day, hour, minute, second |
11 | Rear Low（D） | |
12 | Month High（D） | |
13 | Month Low（D） | |
14 | Day High（D） | |
15 | Day Low（D） | |
16 | Hour High（D） | |
17 | Hour Low（D） | |
18 | Minute High（D） | |
19 | Minute Low（D） | |
20 | Second High（D） | |
21 | Second Low（D） | |
22 | Card number 10th（D） | Card number Content format: decimal character format 2.4G card number for wristband |
23 | Card number 9th （D） | |
24 | Card number 8th （D） | |
25 | Card number 7th （D） | |
26 | Card number 6th （D） | |
27 | Card number 5th （D） | |
28 | Card number 4th （D） | |
29 | Card number 3th （D） | |
30 | Card number 2th （D） | |
31 | Card number 1th （D） | |
32 | Function flag (C） | Content format: Any character, the uppercase character of the flag is normal, and the lowercase letter of the flag is low A / a: positioning function, the tag data 1 indicates the low-frequency positioning address code collected by the tag, B / b: Remove alarm function S / s: alarm function, the value of label data is 01 for help alarm and 02 for acceleration alarm H / s: Heart rate function. Labeled data 1 indicates the heart rate collected by the label, and data 2 indicates the blood oxygen value. (The parts marked in red are not applicable to this product) |
33 | Tag Data 1 | |
34 | ||
35 | Tag Data 2 | |
36 | ||
37 | Tag Data 3 | RSSI signal strength value, high nibble 0 ~ F indicates signal strength, ultra-small value signal is super strong, low nibble 1 ~ 4 indicates corresponding channel number |
38 | ||
39 | High 4 bits (H) of the checksum | Content format: hex character format Checksum byte, add the hexadecimal value of the first 38 characters, plus the check code value here, the combined and trailing byte values are zero |
40 | Low 4 bits (H) of the checksum |
● Checksum example
For example：#000000011504180808090022046518E990000C2
According to the above example, the verification method of the check code is as follows:
No | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 32 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
Character | # | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 5 | 0 | 4 | 1 | 8 | 0 | 8 | 0 | 8 | 0 | 9 | 0 | 0 | 2 | 2 | 0 | 4 | 6 | 5 | 1 | 8 | E | 9 | 9 | 0 | 0 | 0 | 0 | 7 | D |
Hexadecimal | 23 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 31 | 31 | 35 | 30 | 34 | 31 | 38 | 30 | 38 | 30 | 38 | 30 | 39 | 30 | 30 | 32 | 32 | 30 | 34 | 36 | 35 | 31 | 38 | 45 | 39 | 39 | 30 | 30 | 30 | 30 | 7D | |
Calculation Method | Checksum calculation: In sum of all hexadecimal values, the end byte is 0 23 + 30 + 30 + 30 + 30 + 30 + 30 + 30 + 31 + 31 + 35 + 30 + 34 + 31 + 38 + 30 + 38 + 30 + 38 + 30 + 39 + 30 + 30 + 32 + 32 + 30 + 34 + 36 + 35 + 31 + 38 + 45 + 39 + 39 + 39 + 30 + 30 + 30 + 30 + 7D = 800 (combined value end byte is 0) | |||||||||||||||||||||||||||||||||||||||
