Smart Card / RFID Label / RFID Reader
 |
F5019-H
HECERE
| Quantity: | |
|---|---|
Production Description

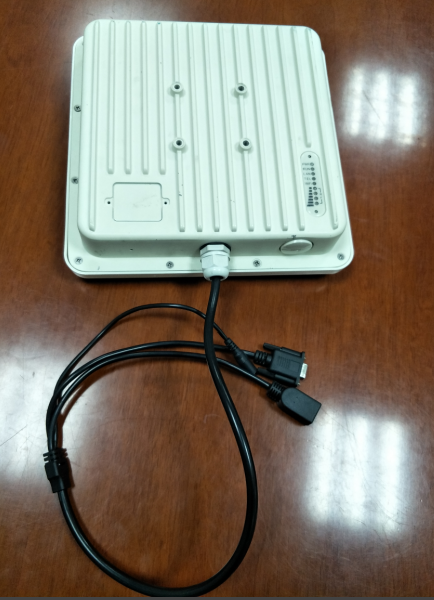

F5019-H is a high-performance integrated UHF RFID reader. It carries UHF M2210 reader module and 9dBi circular polarization antenna and stm32f103RZ processor. It has editable address function, supports multi-device management, equipped with watchdog function, heartbeat application and real-time monitoring device status. F5019-H integrates RS232, and 100Mbit Ethernet port and other communication interfaces, reading distance can reach more than 10 meters. For similar products, F5019-H has more stable performance and reading range.
F5019-H designed by ABS engineering plastic shell, which is compact and light , with waterproof, dust-proof, anti-interference ability and lightning protection.
Product Advantages
1. F5019-H equipped with IMPINJ R2000RF module, perform very well, more adapt to hard environment compare with similar products.
2.It is designed by high performance stm32f103RZ 32-bit chip. With watchdog function, the heartbeat pack mechanism enhances the stability of long-term outdoor operation.
3. Works continuously 60×24 hours under high temperature environment.
4.Single tag reading range can be above 8 meters.
5. Multi-tag reading can be above 300tags/s.
6. Provide full software development kits (SDK).
7.Using integrated RF chip, module performance is more stable
8.Using carrier cancellation technology, the accuracy of tag reading is better and the range is wider.
9.Enhanced noise suppression for reliable data capture.
10.High precision return signal intensity (RSSI).
11.Excellent anti-interference and lightning protection.
12.ABS shell, strong and durable.
13.Waterproof and dust-proof , protection level is IP65.
Product Parameters
Name | Parameters | Note |
Reader main chip | stm32f103RZ | |
Support Module | M2100、R2000 | |
Protocol | EPC global UHF Class 1 Gen 2/ISO 18000-6C | |
Frequency | 840～960MHz(Default 920～925MHz) | |
Support Area | China, Europe, North America, South Korea, Japan,Taiwan... | |
Size | 280*280*75mm | |
Working Voltage | 12V | DC power supply |
Maximum Working Current | 1A | Test of transmitting power at 30 dBm |
Standby Current | ≤80mA | |
Working Temperature | -25℃～+65℃ | |
Working Humidity | ≤95%（+25℃） | |
Storage Temperature | -40℃～+80℃ | |
Maximum Receiving Sensitivity | -82dBm | |
Reading Distance | 0.5~10m | Reading distances depend on the tags and environment |
Serial Communication Parameters | Baud rate adjustable (default 115 200 bps), parity bit: no, data bit: 8 bits, stop bit: 1 bit | |
Power Output | 5～30dBm, each time 1dBm(Default 30dBm) | |
DRM Mode | Support | |
RSSI | Support | |
High temperature automatic protection function | Support | |
Beep | Support | |
Communication Interface | RS232, Ethernet Port, weigand 34/26 |
