High Performance RFID UHF Android Handheld Reader

Operating System

Android 5.1

CPU

MSM 4-Core high-speed processor, 1.2GHz Main Frequency

Memory

RAM: 2G

FLASH: 16G

External Interface

One USB2.0 interface (OTG can support U disk, mouse, 100 MHz Ethernet).

One charging port, one TF card (128G) port, one SIM card port.

Protection Level

Protection Level

IP65

Anti falling

1.2 Meters

Wireless Communication

Bluetooth

V4.0

GPS

(Chose one)

Built-in Beidou/GPS/GLONESS: Support for A-GPS

External Beidou GPS /GPS/GLONES: Accuracy positioning to 2.5m;

Support RTCM 2.3 Differential Data

WIFI

Support IEEE 802.11b/g/n

4G

Support: LTE_FDD, B1/B3/B7, LTE_TDD, B41/B40, WCDMA B1/B2/B5, CDMA BC0, GSM B2/B3/B8

Support: LTE_TDD, 39/B38/B40, TD-SCDMA, B34/B39, GSM B2/B3/B8

Data Acquisition

RFID

Low frequency 125Khz（Optional）

Working frequency: 125K/134.2MHZ

Support protocol: ISO11784/5

Support card: 125K read-only card like TK4100/EM4100/EM4200. 134.2Khz writable card like EM4305.

Reading distance: 0-3cm

High frequency 13.56Mhz（Optional）

Working frequency: 13.56MHZ

Support protocol: ISO/IEC 15693, ISO/IEC 14443A, ISO14443B

Support Card: SR176, SRIX4K(TYPE-B), I- Code2, TI RFID Tag-it HF-Im, EM4034m, MifareClassic ETC.

Reading distance: 0-5cm

UHF 860-960Mhz（Optional）

Working frequency: 840-960MHz(Customized)

Support protocol: EPC C1 GEN2/ISO 18000-6C /ISO18000-6B

Output power: 10dBm-30dBm (Depends n module)

Reading distance: 0-6m

Bar code (Optional)

1D red light scanning (optional)）

Scanning speed: 50 times/s

Scanning distance: 5.7cm～61.0cm

Code type: UPC/EAN, Code128, Code3, Code93, Code1, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS

1D laser scanning (optional)

Scanning speed: 104 times/s

Scanning distance: 2.5cm-114.3cm

Scan types: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Scanning (optional)

Scanning speed: 10 times/s

Recognition distance: 5-30cm

Code type: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, Postal Codes: US PostNet; US Planet; UK Postal; Japan Postal Dutch Postal (KIX), etc.

External function (9PIN probe interface)

Support fingerprint module (optional)

Functions: fingerprint input, image acquisition, fingerprint comparison, fingerprint deletion, etc.

Fingerprint Head Model: TCS1ST

Sensor type: Capacitive type

Image size: 256 x 360

Resolution: 500 DPI

Support printing function (optional)

Printer core: 58mm thermal printer core

Type of printing paper: 58 *35mm

Effective print width: 48mm

Printing accuracy: 8 dots/mm

Maximum printing speed: 85mm/s

Mechanical life: greater than 50Km

Support base charging(optional)

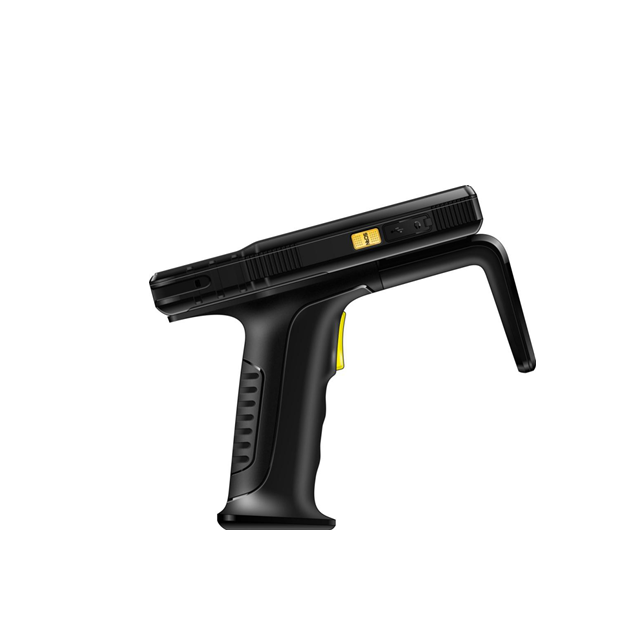

Handle

Support external handle, built-in 5000 mAh battery, support button trigger

Physical parameters

Display

True color 4 "TFT IP touchable LCD display with resolution 800*480

Touch Screen

Thickened toughened glass with 1.1mm thickness, support 10 touch, support double-click wake-up

Keyboard

Entity numeric keyboard, composed of 19 entity keys

Camera

8 mega-pixel with auto-focusing and light compensation function

Headset

3.5mm headset, bluetooth headset

Microphone

Support

Receiver

Support

Speaker

Support

Vibration function

Support

Sensor

Light sensitivity, gyroscope, compass, gravity

Flashlight function

Can be used as emergency lighting

Battery

3.7V lithium battery with capacity of 3800mAh. Handle Battery of 5000mAh

Standby

Standby current less than 10 mA

Size

168mm*75mm*26mm

Weight

640g

Environment Parameters

Working Temperature

-10℃ ~ +50℃

Storage Temperature

-20℃ ~ +60℃

Humidity

5%-95%
