ISO14443A ISO15693 Dual Protocol RFID RS232 Reader Writer

W21Q series it's a 13.56Mhz a desktop dual protocol ISO15693+ISO14443A card reader writer with a standard serial port, can read and write icode slix/2 card and mifare S50/F08 card. It’s not only simple aspect, but also stable and reliable data. We provide full SDK and tesing Demo.

Quantity:
  • W21Q
  • HECERE

Support

Iocde-2, Icode-slixISO15693 + Mifare S50, F08...ISO14443A

Operating System

Windows98, XP7, LIUNX, Android…

Frequency

13.56Mhz

Working Method

Read-write

Reading Distance

0-80mm

Interface

RS232 + USB(Power Supply)

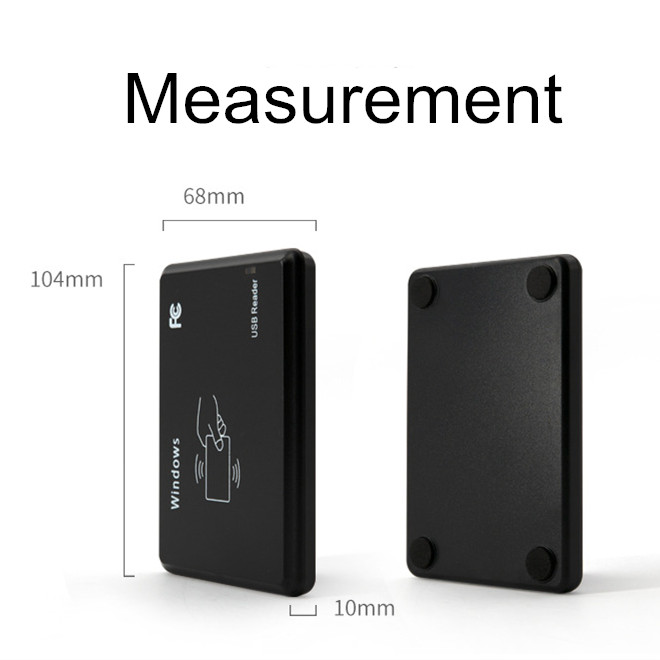

Size

104×68×10mm

Weight

140G

Operating Humidity

-20 ℃~85℃

Operating Temperature

5%~95%

Power Supply

5V

Display

Two LED indicators (Red is standby, green is working)

Remark

With Buzzer

SDK

Provide full software development kits
